In its most standard form, a table saw is composed of a rotary sawblade poking by means of the middle of a flat worktable. Outfitted with fences and guides, its major objective is to lower strong wood or artifical boards into a lot more manageable sizes.
Offered this straightforward operate, why has the desk observed turn out to be this sort of a centerpiece of workshop action? That is the issue that we’re listed here nowadays to answer!
A lot more than just a stationary circular saw, the table observed has acquired its place in wooden retailers all over the place simply because of its potential to complete vital cuts speedily, securely, and effectively. Let us appear at each and every of these uses for a desk observed in far more depth, then end up by addressing the all-essential security factors for employing a table observed.
6 Uses of a Table Saw

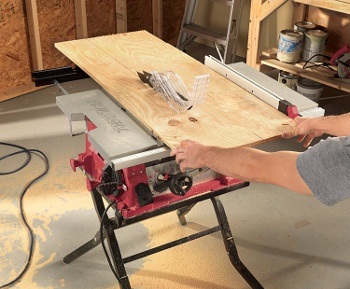

The most widespread use for any table noticed is to lower larger boards into scaled-down, simpler to function with parts. Ripping, or slicing wood to width, is performed parallel to the wood’s grain. You are going to always operate the board directly in opposition to the rip fence (in no way freehand), so as to avoid the chance of twisting the board and jamming your observed.

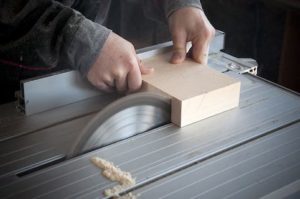

Ripping’s counterpart, crosscutting, is utilized to cut wood to length. So named since you will be reducing across the grain of the wood, this kind of work can be accomplished most properly with a sliding crosscut table information.

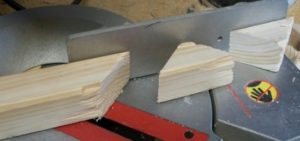

If your task calls for an angled, or miter minimize, you are going to need to use your desk saw’s adjustable miter gauge. Change it to the necessary angle, double-check out with an angle evaluate, then maintain the workpiece firmly from the fence as you feed it via the blade.
3. Bevel Cuts

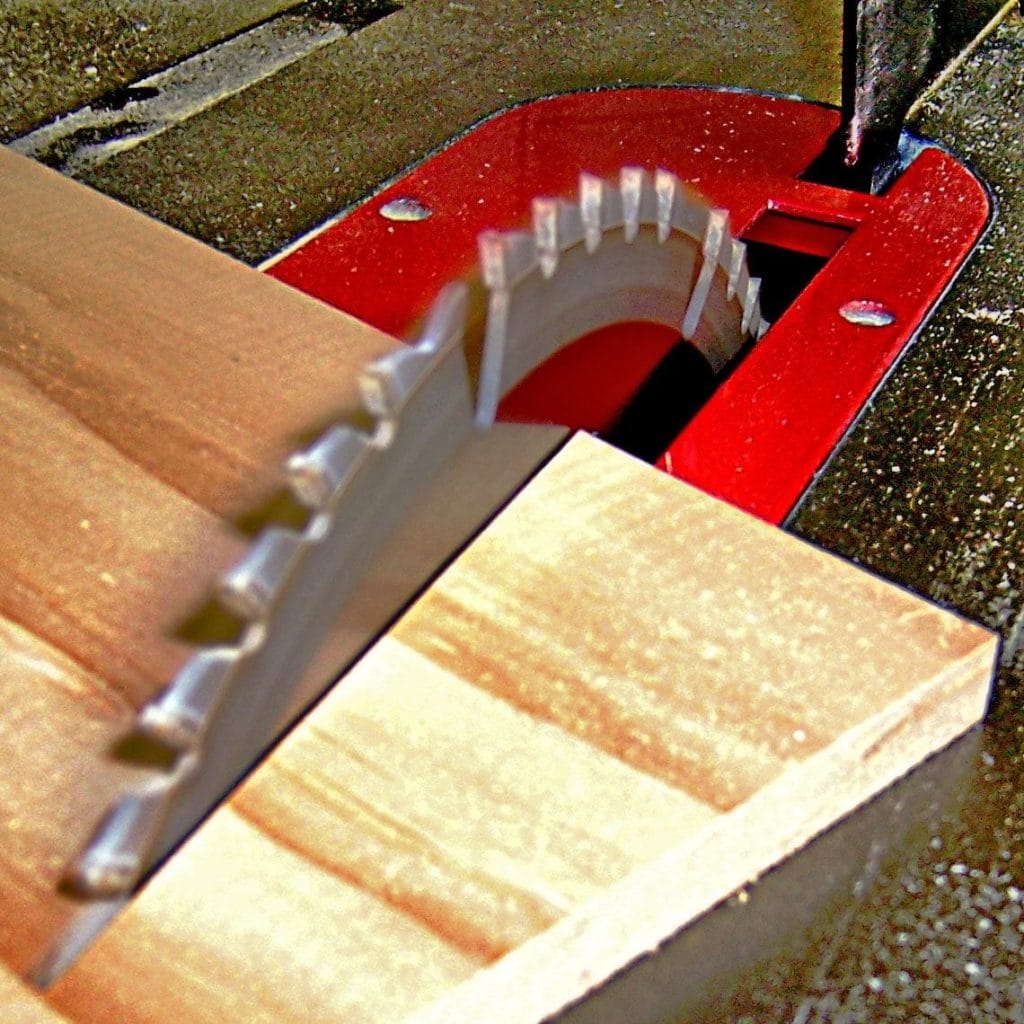

Table saws are made the capability to alter the blade angle, enabling for bevel cuts. Tilt the noticed blade to the essential angle, and double-examine its accuracy with an angle measure. Electrical power on your observed, and you’ll be completely ready to feed as typical for rips or crosscuts at a steady angle.
4. Cutting Rabbets and Grooves
Both of these frequently utilised joint cuts are created a lot less complicated and a lot more correct with a desk noticed. Think of both cuts as a long, slender channel in your board rabbets are minimize out of the significantly edge of the board, even though grooves are minimize more toward the center.
Even though a table saw will make these cuts quickly and conveniently, they are also considerably riskier. This is because many table saws will need removing the blade guard and riving knife to make these precision cuts. Physical exercise further warning and make sure that there are no interruptions in your operate spot whilst slicing rabbets and grooves.

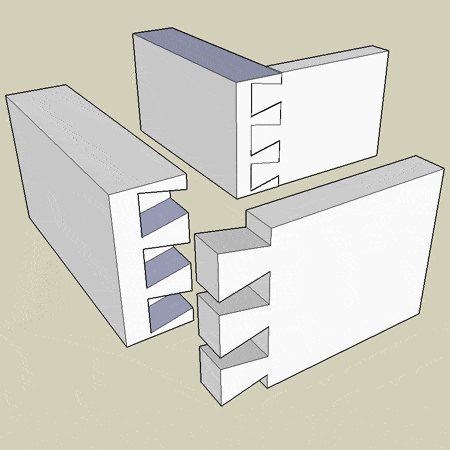

5. Cutting Joints
Your table observed is also capable of making a broad variety of joint cuts outdoors of rabbets and grooves. As prior to, this can at times require getting rid of the blade guard and riving knife be added cautious while slicing joints in these circumstances.
Although a total dialogue of joint types is outdoors of the scope of this report, here is a listing of common joint cuts created less complicated and far more exact by making use of a desk observed:
- Reinforced miter

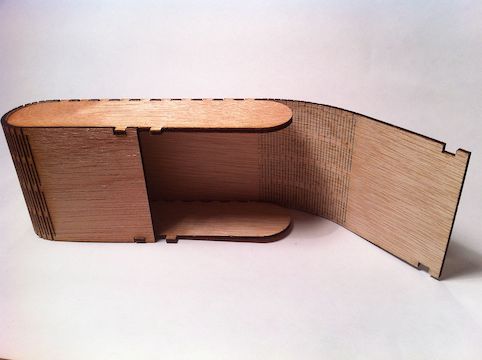

Almost severing a strip of wooden with frequently spaced noticed cuts can provide it with enough local flexibility to make a tight bend. Acknowledged as kerfing, this approach of getting rid of portions of a board can give a curve even to thick hardwoods. The closer the kerf spacing, the tighter the bend that will be created.
Types of Table Saw Blades

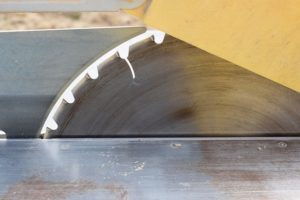

Selecting the proper blade for each of the over cuts can suggest the distinction amongst a smooth, correct lower and a ragged edge that will not very in shape your undertaking. There are 4 main categories of blades to choose from:
- Rip blades have large, alternately set chisel-like teeth with deep recesses between them. This makes them perfect for clearing out the large amounts of sawdust that are produced when cutting with the wood’s grain.
- Crosscut blades have much smaller teeth than a rip blade and are shaped to saw across the wood’s grain without tearing it.
- Combination blades are the best option for home woodshops, as they are designed to be able to cut both with and across the wood grain. While they don’t perform quite as well as a specialized rip or crosscut blade, the convenience of not having to change blades for each cut makes them a much more time-friendly option
- Carbide-tipped blades combine the performance of specialized blades with the versatility of combination blades, making them an attractive (if expensive) option for home and professional wood shops alike.

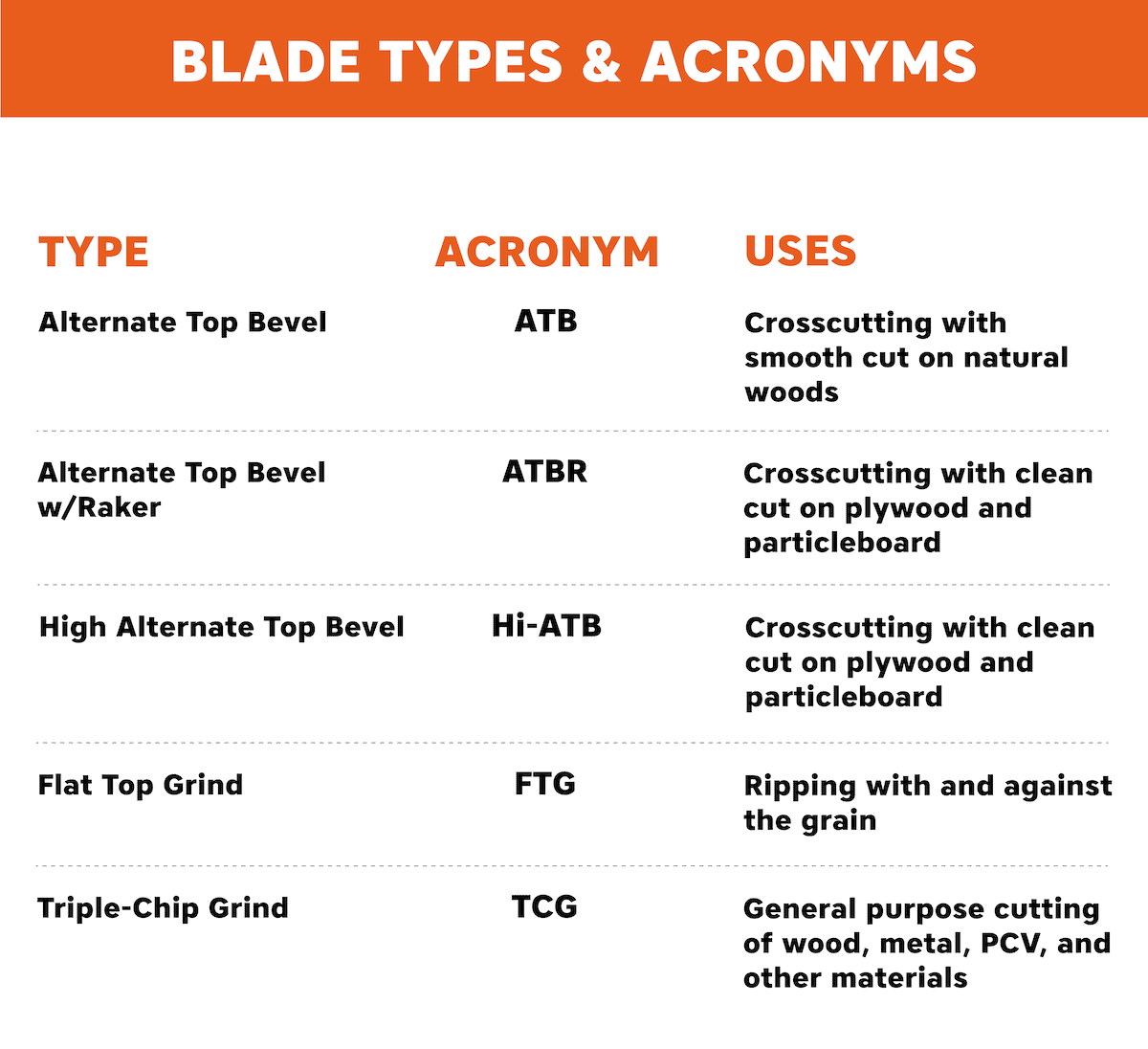

Among these 4 main categories, there are five blade sorts that most end users know by acronyms.
Probably the most worthwhile function of a desk observed is its robust selection of basic safety features. Of system, these safety measures and basic safety mechanisms will only do you any good if you familiarize by yourself with the equipment by reading the basic safety information in the guide!
No make a difference how skilled a woodworker you might be, it’s never smart to deviate from secure functioning practices – even to preserve time or funds. Even though not a comprehensive checklist of workshop basic safety recommendations, usually maintain the adhering to safety recommendations in head even though doing work with your table observed:
- Use the machine’s guards as recommended by the manufacturer
- Disconnect your machine from its power source before changing blades
- Never make adjustments while cutters or blades are moving
- Don’t operate a table saw while wearing loose clothing or jewelry, and always tie back long hair
- Feed wood against the direction of rotation of the table saw’s blade
- Always properly support your workpieces while cutting
- Use a push stick, not your hands, to feed your workpieces through the blade
- Never reach over a blade to remove waste or offcuts
- Keep a clean and tidy workplace, and always check the floor for debris before beginning work
Learning to properly use a desk saw is the 1st step towards receiving the most out of it. Able of making a broad selection of precision cuts swiftly and effectively, they usually turn out to be the coronary heart and soul of the property and specialist woodshops alike. Keep appropriate workshop basic safety and etiquette in head, and you’ll arrive to adore your table saw for its trustworthiness and utility.
