Flying countless numbers of toes in the air and weighing above 30,000 lbs ., the modern day professional airplane needs a lot of support staying aloft. The continuous energy to carry and keep these mammoth machines in the air is far more than your typical automobile motor can manage, so to get the required thrust, airplanes alternatively rely on jet engines.
Jet engines are sophisticated bits of machinery, but when you understand the essence of how they operate, you will discover the design is rather intelligent. We’ll clarify the fundamentals of how jet engines work so you can have a tiny a lot more point of view in the course of your following flight.
How Does It Work?
Jet engines are fuel-powered turbines that constantly pull air in via a admirer in the entrance and expel exhaust out the again. The incoming air goes by way of a compression section between the front and tail conclude prior to mixing with gas, igniting, and propelling the airplane forward.
While there are numerous kinds of jet engines, the most widespread kind of motor is the turbofan. Business airliners largely use this style. Far more private jets are also now using them in scaled-down designs. The engine is composed of 5 crucial factors:
An exterior shell (the diffuser) properties the elements. The enthusiast has a better diameter than the motor main powering it. Only a slight volume of air from the supporter goes through the compressor and combustor to the exhaust. The rest of the air, named bypass air, moves around the engine’s exterior.
Turbofan engines vary in their bypass ratio, the air mass converted to bypass air compared to the air mass directed into the core to electricity the turbine. A larger bypass ratio indicates much more air goes to the bypass than the main.
With a greater air quantity likely to bypass, the engine needs significantly less velocity to create equivalent amounts of thrust. That means it becomes more efficient when the bypass ratio increases.
Most turbofan engines use a large bypass ratio, escalating gasoline performance and thrust. Jet engines can create up to eighty five% of their thrust from the bypass air fairly than the heated main output.

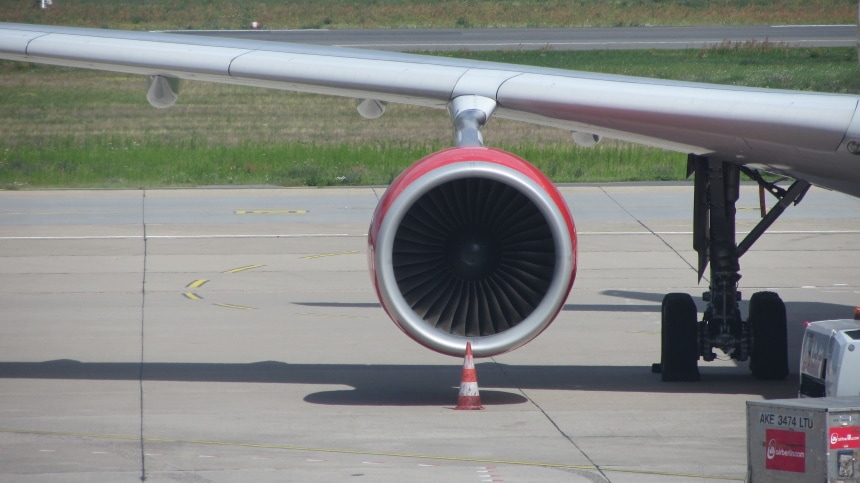

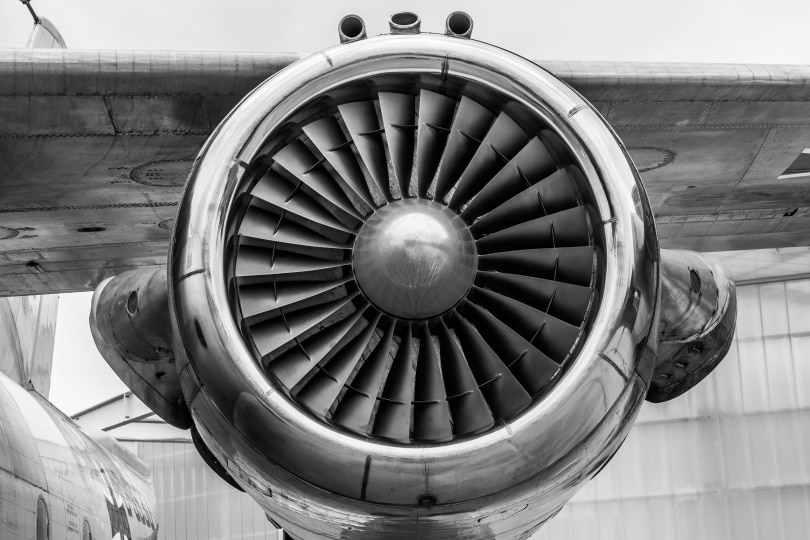

The enthusiast, normally about 9 ft in diameter, at the head of the motor is the vital differentiator in between the turbofan and other turbine-run jet engines. It consists of numerous angled fins that pull air into the housing and speed up it out the back.
The fan converts considerably of the air into bypass air to give productive thrust and dampen the motor sound. It also functions as the 1st compression cycle stage for the air it passes by means of the core.
Compressed air is made up of much more vitality to launch when it combusts, allowing a far more explosive reaction to arise and electricity the turbine. Jet motor compressors can compress air to above forty occasions its incoming stress.

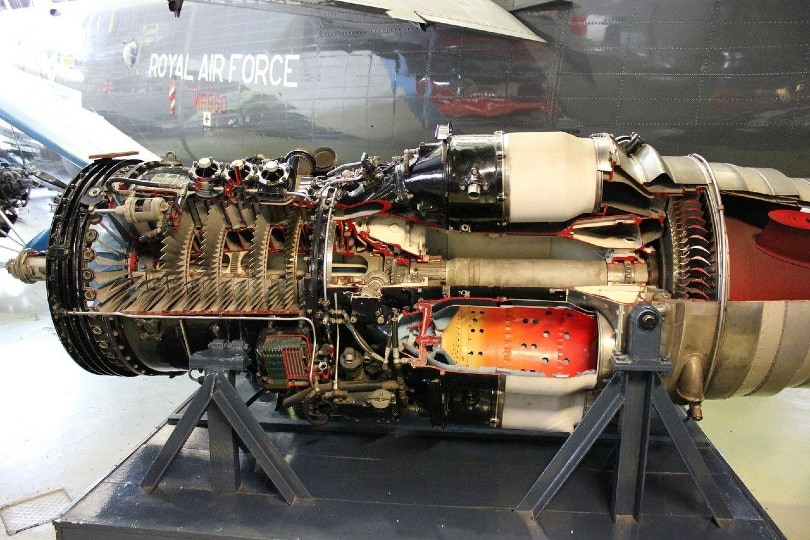

The compressor is generally a two-portion part following the fan consisting of a lower-stress compressor and a high-force compressor. The incoming air from the enthusiast moves via numerous phases in every single compressor section. Each and every one particular forces the air into a narrowing chamber, therefore rising its pressure.
Minimal-stress compressors could include 3–4 phases. The large-pressure compressor is composed of 2–4 times the number of levels as the lower-strain compressor. It is accountable for roughly 70% of the compression.
Each and every stage consists of a spinning bladed enthusiast and a stator with fins pointing in the opposite route. The stator is a stationary ring of blades hooked up to the inside wall of the main housing. The opposed airfoils support direct the air toward the up coming stage, slowing down the air and increasing its force and temperature.
The combustor is the 1st stage in the scorching area of the motor. The compressed air enters a diffuser to gradual down, permitting it mix a lot more efficiently with the gasoline.
Air enters the combustor by means of inlets although gasoline injectors source atomized gasoline. A swirler combines the air and gasoline for an even mixture. An igniter begins the reaction, and the air/fuel combination proceeds burning whilst the motor moves. There are normally numerous ignition factors in which injected air and fuel meet up with organized about the shaft in a ring.
As the compressed air and fuel ignite, the fast expansion produces tons of kinetic strength. The turbines behind the combustor soak up most of this power to electricity the fan and compressor. Like these frontal parts, the turbine is made up of spinning supporter-shaped wheels which capture the air.
There are normally at least two turbines in a jet motor, a low-stress and a large-strain turbine in a dual-spool configuration. Each turbine connects to the accompanying compressor in a spool. The higher-pressure shafts wrap around the lower stress shafts in a nested trend.
Personal spools (the compressor, turbine, and shaft connecting them) can reply independently and spin at different rates from the other folks. That enables each and every turbine to provide the best electrical power input to the compressor that requires it the most.
Reduced-strain spools operate at a reduced temperature and have a increased tip velocity because of to the bigger diameter. The outer spools need to rotate a lot more slowly than the interior kinds to preserve the airflow at subsonic speeds. A 3rd spool frequently connects a turbine to the admirer in engines with huge bypass ratios.
The remaining kinetic power that the turbines really do not use exits the rear of the engine as exhaust. Following Bernoulli’s Theory, the specially shaped nozzle at the finish decreases the exiting airflow pressure to enhance velocity, offering additional thrust. The cone also shields sensitive motor areas.
What Are the Different Types of Jet Engines?
The contemporary turbofan is the most typical and successful for big passenger planes. But they are not the only kind of turbine-powered jet motor. In several approaches, they combine ideas from open up turboprop engines and supporter-significantly less turbojet styles.

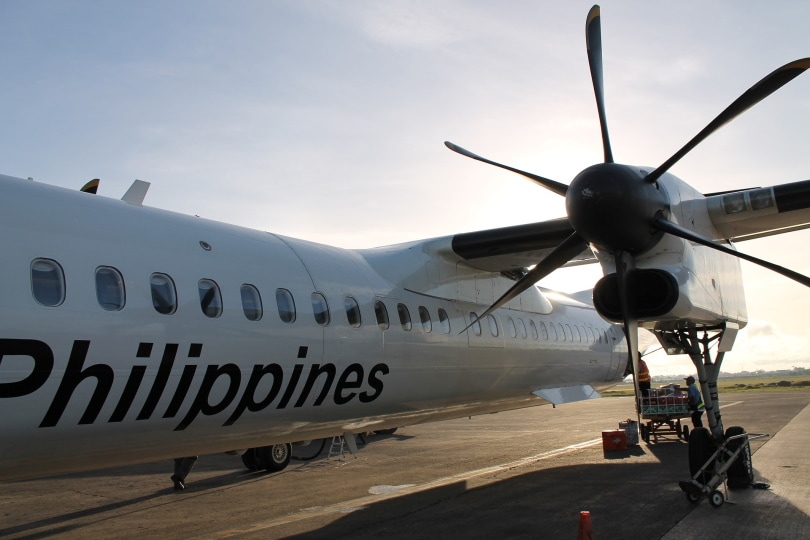

A turboprop motor characteristics an enclosed axial movement compressor, related to a turbofan, that prospects to a combustor. Combustion powers a turbine and spins an unenclosed propeller at the entrance of the motor. Like the turbofan, most kinetic combustion vitality moves toward the propeller relatively than substantial-velocity exhaust thrust.
Turboprops can work for a wide variety of plane sizes. They’re light-weight, successful, value-effective, and have a lot greater overall flexibility in landing and getting off. These engines are excellent for speeds about 350 mph and mid-selection flying altitudes, so they are less useful for long-length flights.
A turbojet is the foundation for the turbofan and the turboprop. As opposed to styles with a propeller, all of the thrust in a turbojet arrives from the exhaust. These engines can be scaled-down and more light-weight but use far more gas due to the deficiency of bypass air.
Turbojet engines can also include afterburner abilities, offering an extreme improve in pace. A second combustion chamber following the turbine mixes gasoline with exhaust gasses for up to 40% increased thrust. Simply because it is not fuel effective, afterburners only appear into engage in when added thrust is required, this sort of as throughout takeoff or climbing.
A ramjet is a unique motor that performs on the same rules of compression and combustion in a linear sequence to generate thrust in the rear. But as opposed to turbine-driven models, these engines have no transferring followers, compressors, or turbines. Instead, they depend on specifically formed cones to compress incoming air. Air enters a combustion chamber, mixes with fuel, and ignites to generate thrust.
Simply because it relies on incoming air for compression, ramjet-outfitted aircraft want assist to get started. Most demand a rocket to get up to speed before making sustainable ahead propulsion.
Where Is It Used?

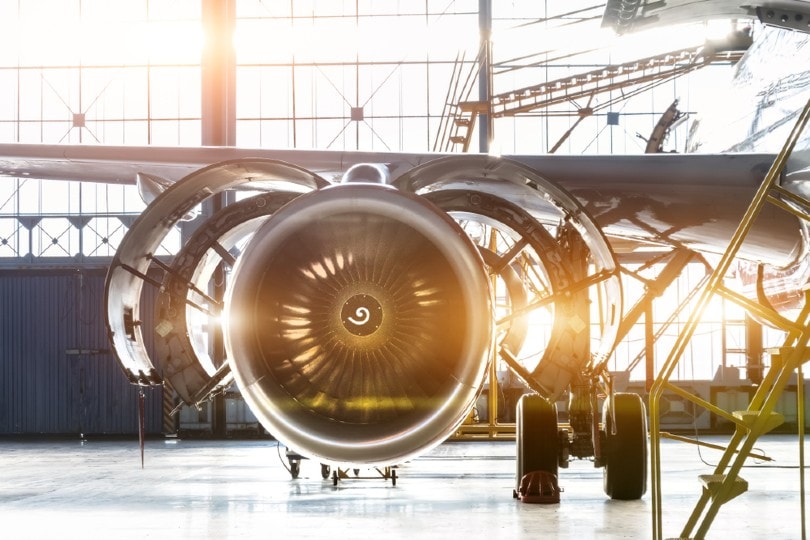

Large bypass turbofans show up on big professional and navy transportation plane, as these planes are huge ample to maintain this kind of fuel-successful engines.
Lower bypass turbofans normally show up on armed forces fighter aircraft because they are lighter and smaller. Unlike greater turbofans, they can travel at supersonic speeds when effectively equipped. These also usually include afterburners for overcome functionality and more quickly takeoffs and climbs.
Advantages of Jet Engines
Jet engines are the most efficient options at mid-higher altitudes, with higher bypass supplying smoother and quieter overall performance and much more gasoline efficiency. Over other propulsion techniques, this sort of as piston-powered engines, jet engines boast many rewards, such as:
The principles of jet engines are also useful outdoors aviation. Aeroderivative gasoline turbines are jet engines utilised as electricity crops for generating electricity and powering other devices, this kind of as ships.
Disadvantages of Jet Engines
The vital downsides to jet engines are mainly related to their complexity. Jet engines are costly, notably large-performance and multi-phase turbofans. They also work repeatedly, which entails an total better gasoline use.
Frequently Asked Questions (FAQs)
How Does a Jet Engine Start?
A jet motor uses incoming air with a enthusiast accelerating it to feed the combustor and turbine constantly. But to begin the total procedure, it requirements a bounce start. An electric powered motor begins the admirer movement slowly. As it will get up to velocity, gas begins to movement into the combustor. As soon as adequate air enters the chamber, the ignitor can light-weight the combination and get the motor to full pace.
Jet engines are marvels of engineering and significantly much more sophisticated than what we have laid out in this breakdown. But even at its most basic, the idea provides intriguing insights into power technology past aviation. While it may not be obvious, technological innovation is also enhancing quickly, and just before lengthy, we may see new opportunities in quicker yet even a lot more sustainable industrial transportation.
